Description

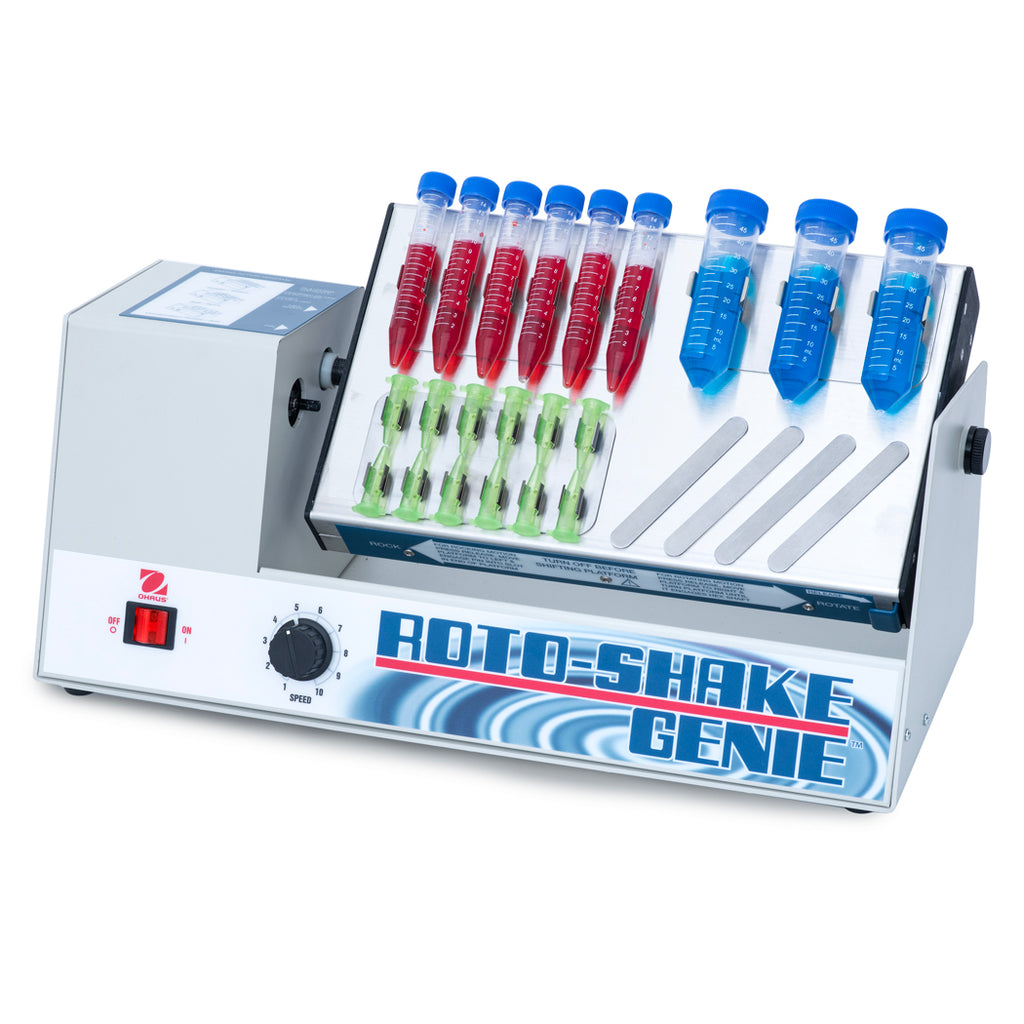

Magneto-magic and rugged lab rotator to rotate, rock, or 3D orbit any container
Motion |
Rock;Rotate;Shake with Accessories |
Genie rotators combine rotating and rocking in a compact, versatile design. The magneto-magic system features a magnetic platform, clip plates, and bag strips that firmly hold various containers rotating at any angle, in any combination. Rocking tray fits large open containers. 3D and horizontal orbital attachments turn Roto-Shake Genie into an orbital shaker. Touchscreen control allows Roto-Rock Genie to program combined rock and rotate cycles.
Applications
Display
Operation
Communication
Construction
Design Features
Specifications
|
Motion |
Rock; Rotate; Shake with Accessories |
|
Control |
Analog |
|
Capacity |
4.5 kg/10 lb centered on axis for rotating / rocking |
|
Tray Size |
305 mm x 305 mm (LxW) |
|
Dimensions |
252 mm x 267 mm x 508 mm (LxHxW) |
|
Rocking Speed |
10 rpm - 70 rpm |
|
Magnetic Platform Size |
200 mm x 340 mm (LxW) |
|
Tilt Angle |
10° |
|
Accessories Included |
Clip Plate for 28-30 mm tubes; Non-Skid Tray; Clip Plate for 10-13 mm tubes; 4x Bag Mounting Strips; Clip Plate for 15-17 mm tubes |
|
Net Weight |
11.8 kg |
|
Rotating Speed |
5 rpm - 35 rpm |
|
Safety Certification |
CE |
|
Power |
230V, 50Hz |
|
Working Environment |
0°C - 38°C, 95%RH, non-condensing |
Download
