Description
Rethink Manual Pipetting
Accuracy and Precision

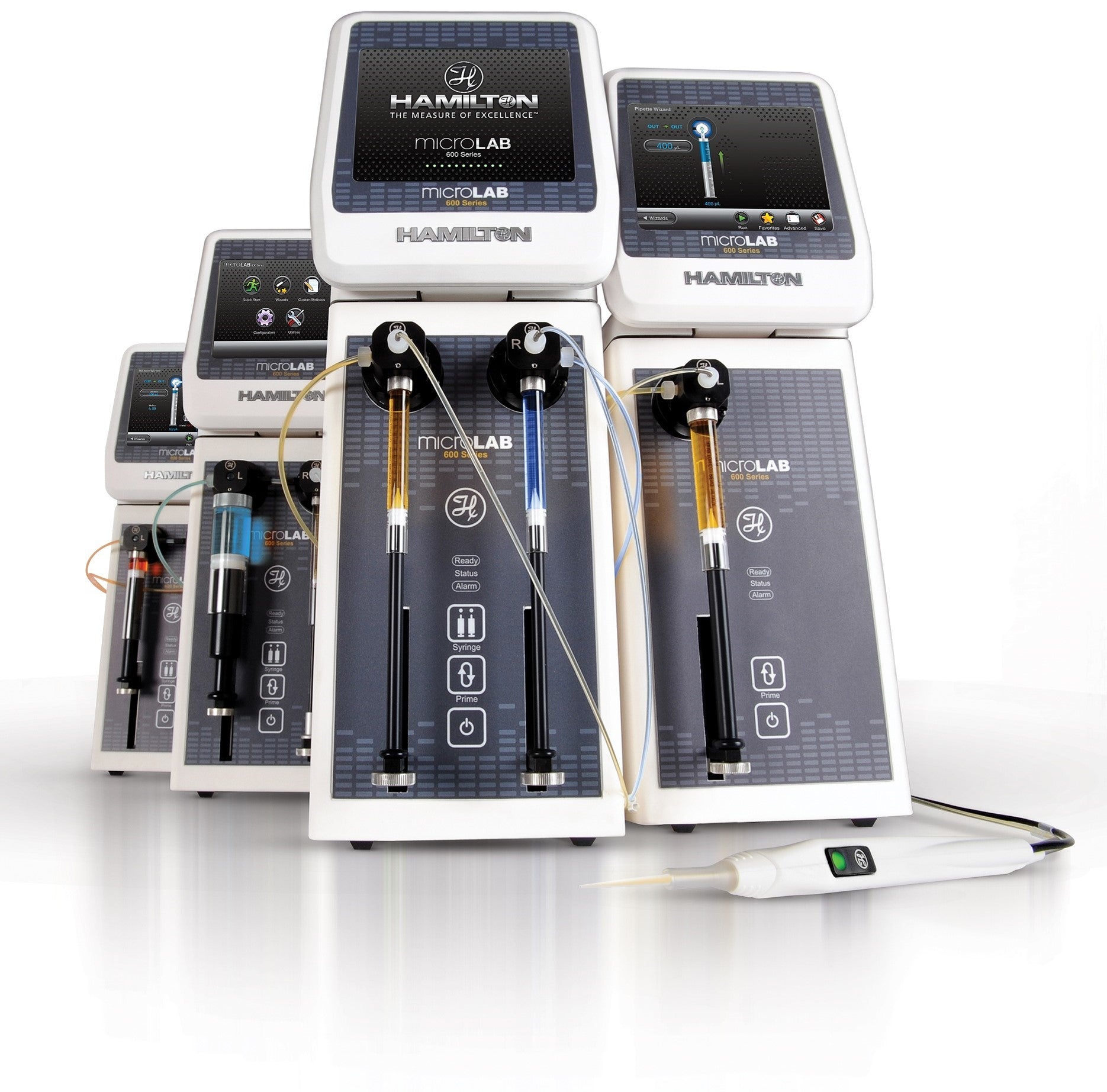

With unmatched versatility, the Microlab 600 is designed to increase the throughput and repeatability of any manual pipetting application. Have confidence in your diluting and dispensing processes with 99%+ accuracy and a highly inert fluid path for even the most sensitive techniques.
Microlab 600 Accuracy and Precision
Which controller software?
The Basic Controller is ideal for completing simple diluting and dispensing tasks. Quickly set the desired volume in the Quick Start Run Screen and begin. The Advanced controller contains a significant number of additional features and allows users to create methods using air gaps, washing, repetitive dispensing, and more.
Microlab 600 Controller Software
Ordering
The Microlab 600s are sold in complete packages that include all tubing, syringes, and accessories that are needed. To select the correct package you will need to select a controller; you will be contacted by the RG Scientific team to confirm your required syringe / syringes.
Please note: Additional syringes are available in the accessories module, these are in addition to the syringes that are supplied with the units.
Specifications
Single and Dual Syringe Pump Specifications
|
Accuracy |
+/- 1% |
|
Precision |
+/- 0.2% |
|
Syringe Drive Mechanism |
1.8° stepper motor with variable volumetric flow rate |
|
Flow Rate |
0.003uL/s – 6,000uL/s (depending on the syringe that is selected) |
|
Syringe Resolution |
0.002% of the nominal syringe volume |
|
Compatible Syringes |
10uL, 25uL, 50uL, 100uL, 250uL, 500uL, 1mL, 2.5mL, 5mL, 10mL, 25mL and 50mL Bubble Free Prime Syringes |
|
Volume Range |
1.0uL – 50mL |
|
Fluid Path |
Borosilicate, PTFE, CTFE, |
|
Communication Type |
Ethernet, 10/100 BASE-T |
|
Communication Protocol |
.NET 2.0 Application Programming Interface (API) |
|
Pump Memory |
One method stored in non-volatile memory when not connected to a controller |
|
Calibration |
Factory tested and traceable to N.I.S.T standards |
|
Certifications |
CE, CSA |
|
Power requirements |
100-240V AC, 1.5A max, 50/60 Hz |
|
Power Rating |
24V DC, 2.5A |
|
Dimensions |
178.. x 140mm x 267mm |
|
Weight |
5.9kg |
Controller Specifications
|
Screen Size |
5.7 inch (15cm diagonal) |
|
Tilt Positions |
5 positions from 90° to flat |
|
Mounting Options |
On top of pump, bench top, wall mount |
|
Program Memory |
2GB (with advanced controller) |
|
Communication Type |
Ethernet, 10/100 BASE-T |
|
Power Rating |
24V DC, 2.5A |
|
Dimensions |
58mm x 166mm x 178mm (in down position) |
|
Weight |
|
