Description
Engineered for Accuracy, Designed for Demanding Applications

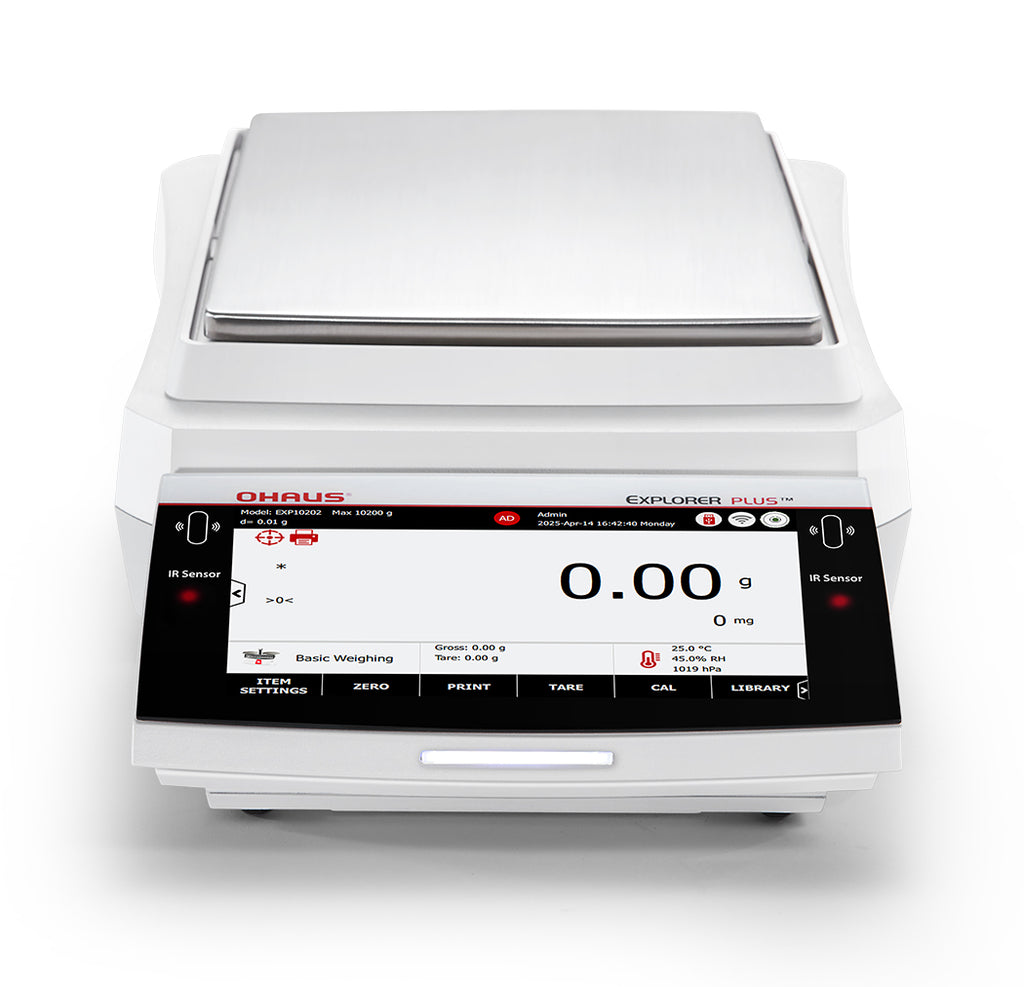

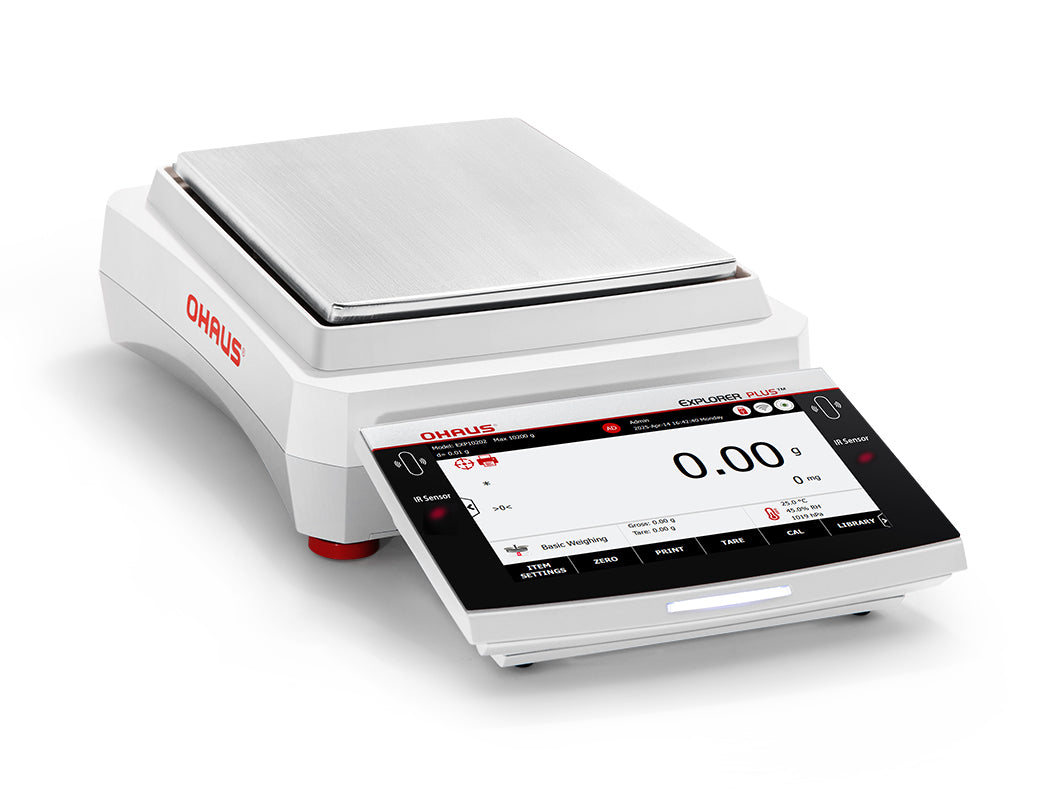

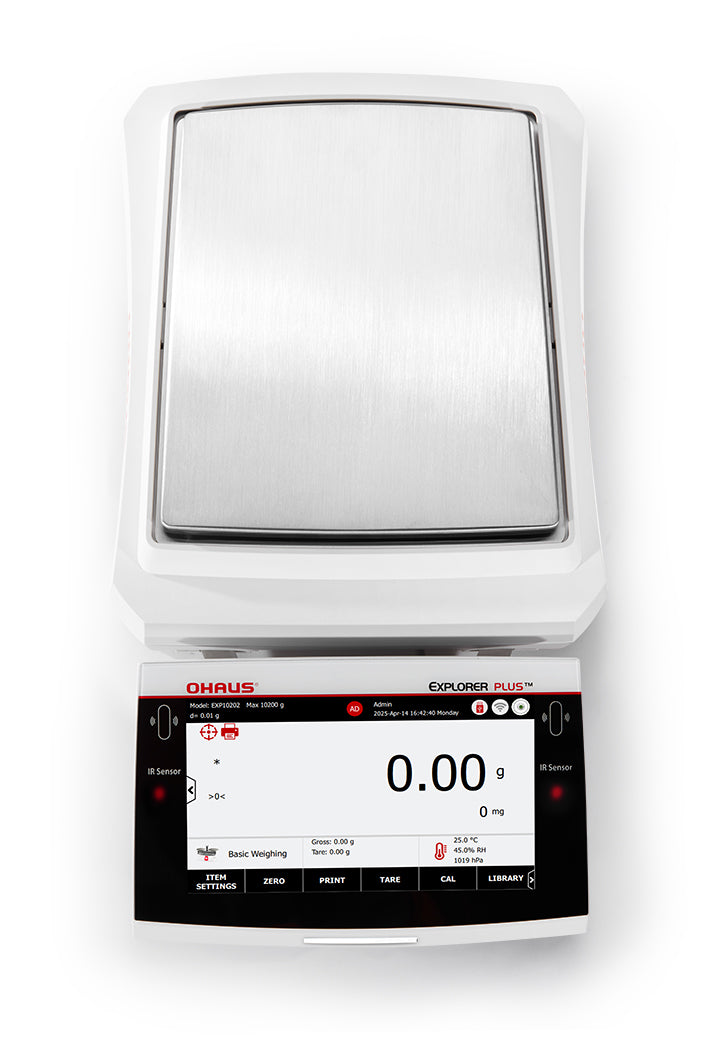

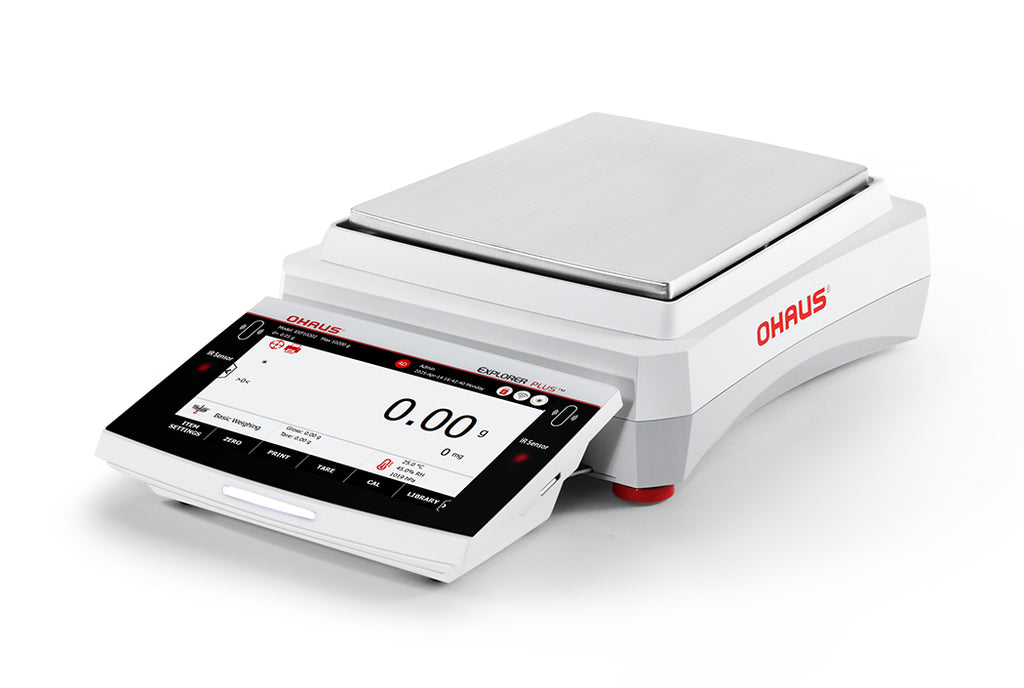

The new Explorer Plus (EXP Series) offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Unique Features:
• Intelligent User Experience
Seamless setup with motorized leveling, anti-pinch auto-doors, touchless sensors, ionizer
and draftshield light. A 7-inch glass touchscreen, chemical protection and 2 customizable
status lights.
• Supports Compliance for Data Traceability
Ensure compliance with 4-level user system, password protection, and 100k internal
system log. The time synchronization NTP function confirms data traceability to meet
pharmaceutical regulations.
• Effortless System Integration
Advanced communication capabilities with straightforward integration to Laboratory
Information Management Systems (LIMS), and hassle-free data transfer with driverless HID
for easy data input.
Specifications
|
Model |
EXP2202 |
EXP4202 |
EXP6202 |
EXP8202 |
EXP12202 |
|
Capacity |
2200 g |
4200 g |
6200 g |
8200 g |
12200 g |
|
Readability d |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.007 g |
0.007 g |
0.007 g |
0.007 g |
0.007 g |
|
Repeatability (sd.), 5% of Full Load to Full Range |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
|
Linearity Deviation Typical |
0.006 g |
0.006 g |
0.006 g |
0.006 g |
0.006 g |
|
Linearity Deviation |
0.02 g |
0.02 g |
0.02 g |
0.02 g |
0.02 g |
|
Span Calibration Points |
500g,1000g,1500g, 2000g |
1000g, 2000g, 3000g, 4000g |
2000g, 3000g, 4000g, 6000g |
2000g, 4000g, 6000g, 8000g |
6000g, 8000g, 10000g, 12000g |
|
Weighing Units |
g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg Customer 1, Customer 2 |
||||
|
Stabilization Time (typical) |
≤ 1 second |
||||
|
Sensitivity Temperature Drift (ppm/℃) |
3 |
||||
|
Min-Weight (typical) (K=2, U=1%) |
1.4 g |
||||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
14 g |
||||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
8.2 g |
||||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay, Detachable Terminal |
||||
|
Display Resolution |
800 x 480 Pixels |
||||
|
Communication |
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
||||
|
Leveling System |
Motorized Leveling System with Digital Leveling Bubble |
||||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
||||
|
Weighing Pan Size |
Trapezoid Pan 178mm x 201mm |
||||
|
Environmental Sensor (Load Cell) |
Temperature Sensor, Relative Humidity Sensor (RH), Air Pressure Sensor |
||||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
||||
|
Anti-static Glass Panel |
Standard Equipped |
||||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
||||
|
Assembled Dimensions (W x D x H) |
229mm x 408mm x 97mm |
||||
|
Net Weight |
5.5 kg |
||||
|
EXP6201 |
EXP8201 |
EXP10201 |
|||
|
Capacity |
6200 g |
8200 g |
10200 g |
||
|
Readability d |
0.1 g |
0.1 g |
0.1 g |
||
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.07 g |
0.07 g |
0.07 g |
||
|
Repeatability (sd.), 5% of Full Load to Full Range |
0.1 g |
0.1 g |
0.1 g |
||
|
Linearity Deviation Typical |
0.06 g |
0.06 g |
0.06 g |
||
|
Linearity Deviation |
0.2 g |
0.2 g |
0.2 g |
||
|
Span Calibration Points |
2000g, 3000g, 4000g, 6000g |
2000g, 4000g, 6000g, 8000g |
2500g, 5000g, 7500g, 10000g |
||
|
Weighing Units |
g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg, Customer 1, Customer 2 |
||||
|
Stabilization Time (typical) |
≤ 1 second |
||||
|
Sensitivity Temperature Drift (ppm/℃) |
5 |
3 |
3 |
||
|
Min-Weight (typical) (K=2, U=1%) |
14 g |
||||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
140 g |
||||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
82 g |
||||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay, Detachable Terminal |
||||
|
Display Resolution |
800 x 480 Pixels |
||||
|
Communication |
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
||||
|
Leveling System |
Motorized Leveling System with Digital Leveling Bubble |
||||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
||||
|
Weighing Pan Size |
Trapezoid Pan 178mm x 201mm |
||||
|
Environmental Sensor (Load Cell) |
Temperature Sensor, Relative Humidity Sensor (RH), Air Pressure Sensor |
||||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
||||
|
Anti-static Glass Panel |
Standard Equipped |
||||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
||||
|
Assembled Dimensions (W x D x H) |
229mm x 408mm x 97mm |
||||
|
Net Weight |
5.5 kg |
||||
