Description
Built for Precision, Powered by Innovation

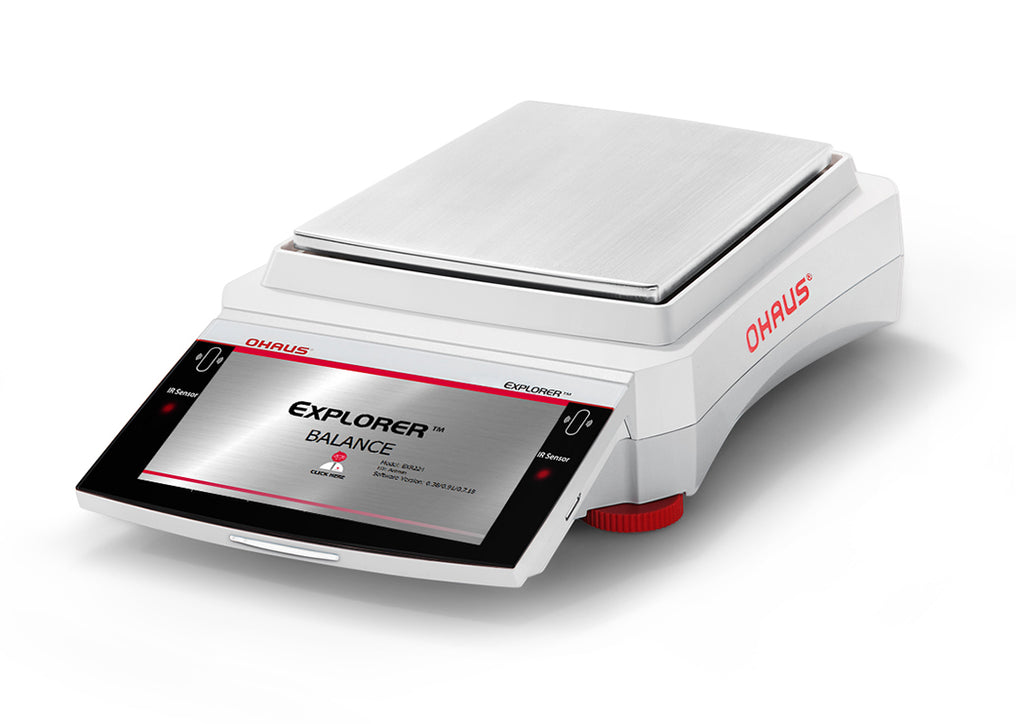

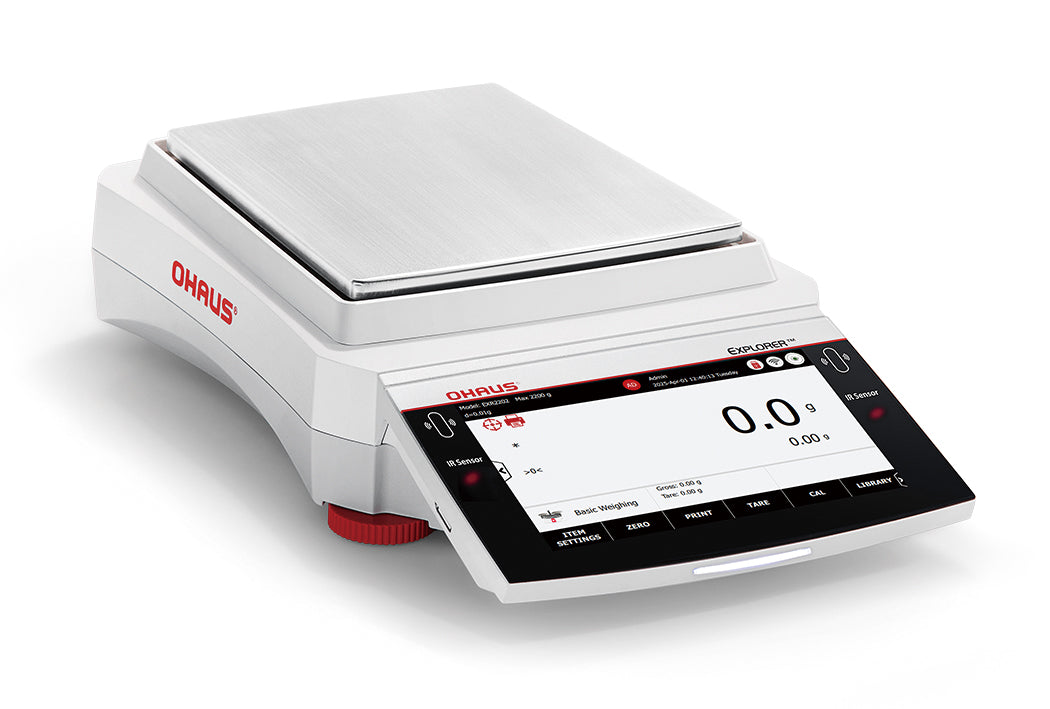

The new Explorer (EXR series) offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Unique Features:
• High Performance Weighing
Achieve consistent results with built-in automatic calibration, touchless sensors and a
ventilated weighing pan. Get reliable data with the digital high-speed load cell.
• Refined User Experience

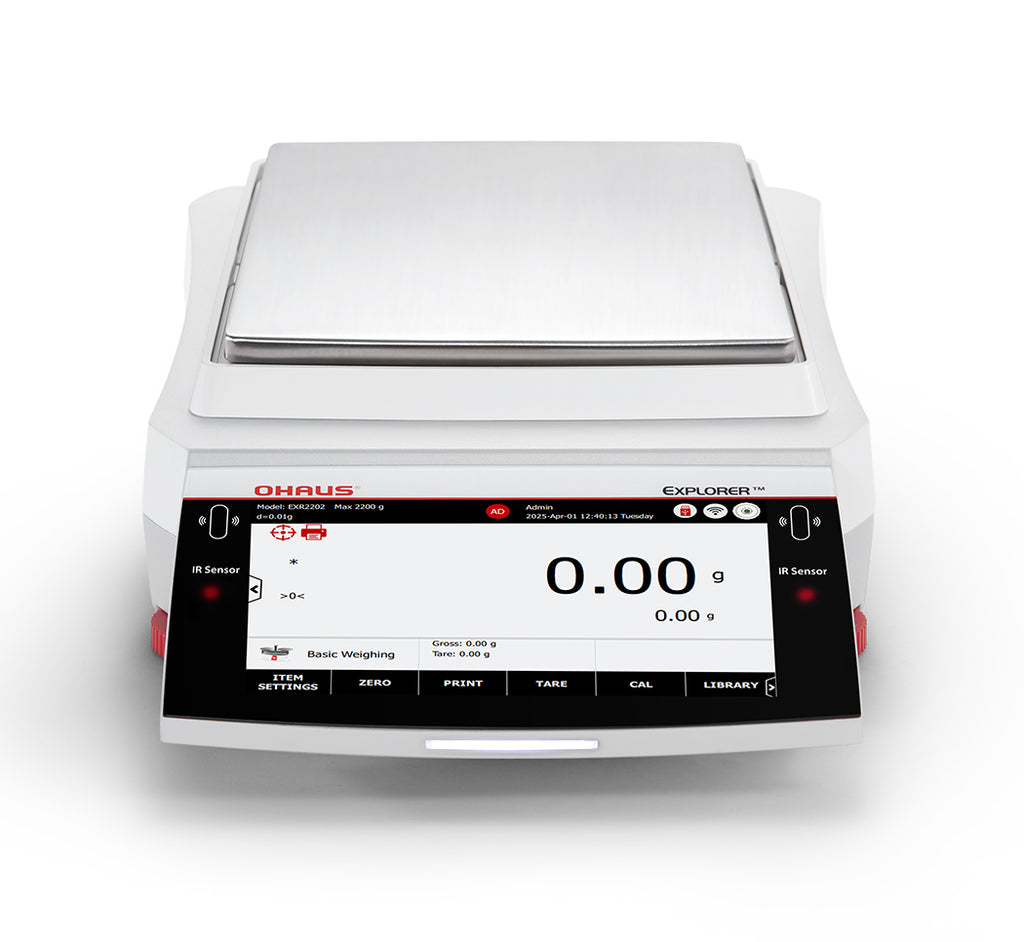

An intuitive 7-inch glass touchscreen, digital leveling, and simplified data management
is easy to use. With an effortless installation and chemical-protective design it ensures
efficiency and comfort.
• Effective Communication Options
Supports HID connection to PC or keyboard without drivers, and provides 2-way
communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data
transfer.
Specifications
|
Model |
EXR2202 |
EXR4202 |
EXR6202 |
EXR8202 |
EXR12202 |
|
Capacity |
2200 g |
4200 g |
6200 g |
8200 g |
12200 g |
|
Readability d |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.007 g |
0.007 g |
0.007 g |
0.007 g |
0.007 g |
|
Repeatability (sd.), 5% of Full Load to Full Range |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
0.01 g |
|
Linearity Deviation Typical |
0.006 g |
0.006 g |
0.006 g |
0.006 g |
0.006 g |
|
Linearity Deviation |
0.02 g |
0.02 g |
0.02 g |
0.02 g |
0.02 g |
|
Span Calibration Points |
500g,1000g,1500g, 2000g |
1000g, 2000g, 3000g, 4000g |
2000g, 3000g, 4000g, 6000g |
2000g, 4000g, 6000g, 8000g |
6000g, 8000g, 10000g, 12000g |
|
Weighing Units |
g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg Customer 1, Customer 2 |
||||
|
Stabilization Time (typical) |
≤ 1 second |
||||
|
Sensitivity Temperature Drift (ppm/℃) |
3 |
||||
|
Min-Weight (typical) (K=2, U=1%) |
1.4 g |
||||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
14 g |
||||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
8.2 g |
||||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay |
||||
|
Display Resolution |
800 x 480 Pixels |
||||
|
Communication |
USB Host (Type A) x 2, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
||||
|
Leveling System |
2 Leveling Feet with Digital Leveling Bubble |
||||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
||||
|
Weighing Pan Size |
Trapezoid Pan 178mm x 201mm |
||||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
||||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
||||
|
Assembled Dimensions (W x D x H) |
229mm x 391mm x 95mm |
||||
|
Net Weight |
4.9 kg |
||||
|
EXR6201 |
EXR8201 |
EXR10201 |
|||
|
Capacity |
6200 g |
8200 g |
10200 g |
||
|
Readability d |
0.1 g |
0.1 g |
0.1 g |
||
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.07 g |
0.07 g |
0.07 g |
||
|
Repeatability (sd.), 5% of Full Load to Full Range |
0.1 g |
0.1 g |
0.1 g |
||
|
Linearity Deviation Typical |
0.06 g |
0.06 g |
0.06 g |
||
|
Linearity Deviation |
0.2 g |
0.2 g |
0.2 g |
||
|
Span Calibration Points |
2000g, 3000g, 4000g, 6000g |
2000g, 4000g, 6000g, 8000g |
2500g, 5000g, 7500g, 10000g |
||
|
Weighing Units |
g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg, Customer 1, Customer 2 |
||||
|
Stabilization Time (typical) |
≤ 1 second |
||||
|
Sensitivity Temperature Drift (ppm/℃) |
5 |
3 |
3 |
||
|
Min-Weight (typical) (K=2, U=1%) |
14 g |
||||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
140 g |
||||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
82 g |
||||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay |
||||
|
Display Resolution |
800 x 480 Pixels |
||||
|
Communication |
USB Host (Type A) x 2, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
||||
|
Leveling System |
2 Leveling Feet with Digital Leveling Bubble |
||||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
||||
|
Weighing Pan Size |
Trapezoid Pan 178mm x 201mm |
||||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
||||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
||||
|
Assembled Dimensions (W x D x H) |
230mm x 393mm x 96mm |
||||
|
Net Weight |
4.9 kg |
||||
