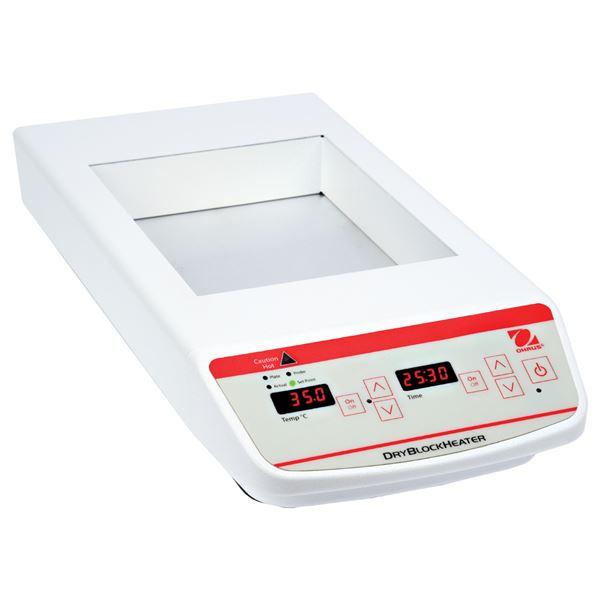

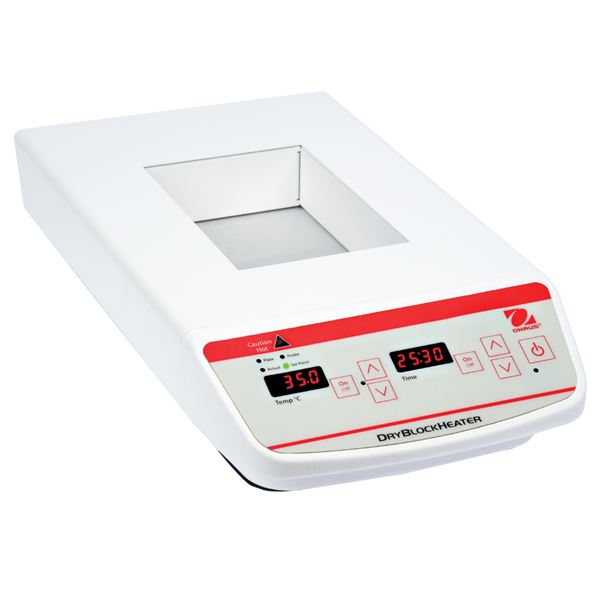

Versatile and dependable block heaters deliver precise, reliable results

Dry Block Heaters are ideal for applications that require temperature stability. All units hold interchangeable modular blocks with over 40 choices. Blocks are easy to use, no tools required. Close tube-to-block contact enables maximum heat retention, resulting in efficient heating. The digital models offer exceptional temperature uniformity and stability for repeatable results, while non-digital models are an economical choice.

Applications

Incubation & Activation of Cultures, Enzyme Reactions, Immunoassays, Melting/Boiling Points, Isothermal Incubations, Nucleic Acid Denaturation

Display

LED display (digital models) and dual-adjustment knobs with dial markings (analog models)

Operation

Detachable 3-wire cord and plug (included), analog models require an external thermometer or temperature device for temperature setpoint

Construction

Painted steel housing, support rod holder with locking knob

Design Features



Specifications

Control	Analogue / Digital
Temperature Range	Ambient + 5°C – 120°C
Stability	± 0.2°C
Uniformity	± 0.2°C at 37°C
Heat Up Time	45 / 50 / 60 min
Calibration	Temperature calibration
Dimensions	8.9cm x 31.5cm / 39.1cm / 42.9cm x 20.3cm
Net Weight	2.5kg / 2.8kg / 3.8kg
Number of Blocks	1/2/4
Overshoot Protection	10°C above set point
Power	230V, 50/60Hz
Power Consumption	110W / 210W / 310 W
Safety Certification	CE;  TUV
Working Environment	18°C – 33°C, 20% – 80%RH, non-condensing



Downloads

1 Block Dry Block Heaters Brochure

2 Block Dry Block Heaters Brochure

4 Block Dry Block Heaters Brochure
