Description
An advanced on-site rapid test multiparameter colorimetric turbidimeter with multiple functions]
Aquasearcher™ AP50MM Portable Multiparameter Colorimetric Turbidimeter has over 50 preset water quality indicators and is widely suitable for educational, industrial, environmental, and municipal administrative uses. It is equipped with 7 independent wavelength light sources and built-in standard curves to simplify on-site testing. Its highly sensitive and advanced optical path technology ensures accurate data. It is powered by alkaline batteries to guarantee convenient on-site testing.
Applications
Multi-parameter colorimetry, turbidity
Display
Backlit Graphical LCD, 160×240 pixels
Operation
4 AA (LR6) Batteries (Included)
Construction

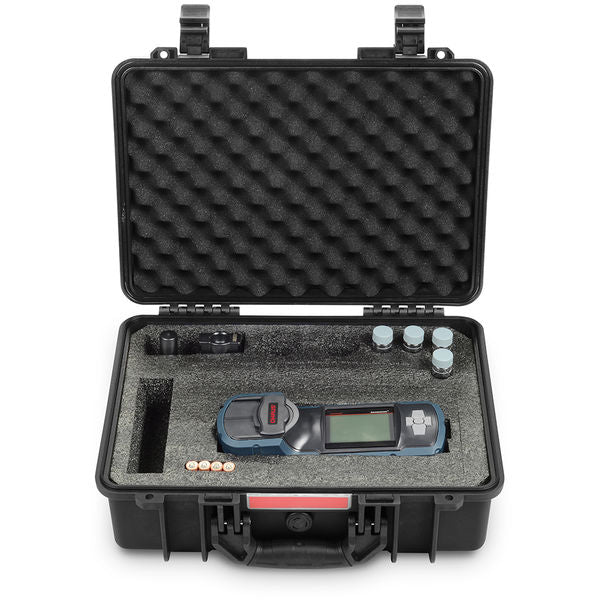

Scattering turbidity method; Briefcase
Design Features
30,000 Group with Date, Time；support auto-off
Specifications
|
Fixed wavelength |
365 nm; 420 nm; 455 nm; 525 nm; 560 nm; 570 nm; 630 nm |
|
Photometric Measuring Range |
0 Abs ~ 1 Abs |
|
Photometric Accuracy |
± 0.005 Abs @1.0 Abs Nominal |
|
Turbidity Optical System |
Nephelometric |
|
Data Storage |
30,000 Group with Date, Time |
|
Battery Life |
6 months (typical) @25 readings a week |
|
Dimensions |
265 mm x 69 mm x 88 mm (LxHxW) |
|
Display |
Backlit Graphical LCD, 160×240 pixels |
|
Net Weight |
0.6KG |
|
Power |
4 AA (LR6) Batteries (Included) |
|
Sample Vials Compatibility |
Round Ø24mm |
|
Source Lamp |
Light Emitting Diode (LED) |
|
Storage temperature range |
18 °C - 60 °C ~ 0 °F - 140 °F |
|
Turbidity Detection Limit NTU |
1 |
|
Turbidity Excitation Wavelength |
IR LED; White |
|
Turbidity Measuring Range NTU |
0 - 200 |
|
Turbidity Reproducibility |
1 NTU |
|
Wavelength accuracy |
±1.0nm |
|
Wavelength Selection |
Automatic |
|
Working Altitude |
Up to 2000m |
|
Working Environment |
4 ~ 41 °C , 85%RH, non-condensing (40 ~ 106 ºF, 85%RH, non-condensing) |
