Description
Circulation chiller for reliable continuous operation in laboratory and research applications from -10 to 40°C

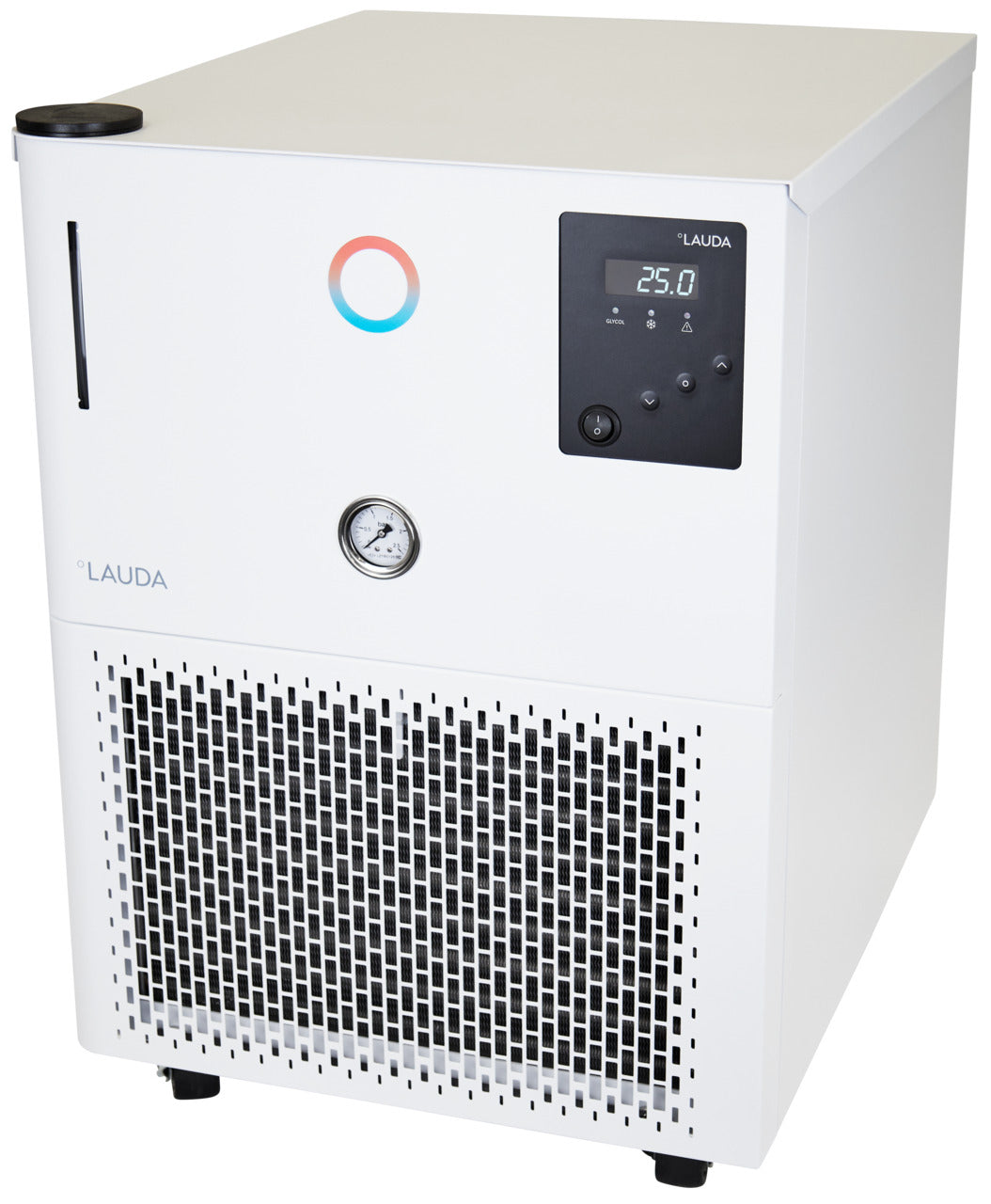

MICROCOOL MC 1200
The compact circulation chiller MC 250 and MC 350 fit effortlessly on a lab bench. Somewhat larger models are also available having 600 and 1200 watts of cooling capacity and which can be positioned on the floor under a lab bench to save space. Additionally, the MC 1200 W, which is the most powerful device at 1200 watts, is also available in a water-cooled version.
Features
-
Circulation chiller
- Fully electronic continuous controller
- RS 232 interface
- Adjustable bypass for pressure limiting
- Operates with non flammable liquids (water,water/glycol)
- 1-line LED display for display of actual or set temperature
- Temperature protection for the pump windings, lighted level indication and low level alarm
- Auto-Start-Timer and Auto-Shut-Down function
- Cooling capacity adjustment by solenoid valve control including compressor on-off control
- User-friendly menu guidance with simplest 3-key operation
- Magnetically coupled block pump
- Filler opening on top, outlet connection on the backside
- Condenser cooling Air
Technical data (according to DIN 12876) |
|
|
Working temperature range |
-10 ... 40 °C |
|
Ambient temperature range |
5 ... 40 °C |
|
Temperature stability |
0.5 ± K |
|
Max. discharge pressure |
1,3 bar |
|
Max. pump flow pressure |
35 L/min |
|
In / Outlet connection thread (outside) |
G 3/4" |
|
Min. filling volume |
7 L |
|
Max. filling volume |
14 L |
|
Dimensions (WxDxH) |
450 x 550 x 650 mm |
|
Weight |
63 kg |
|
Noise level |
59 dB(A) |
|
Max. power consumption |
1.15 kW |
|
Current consumption |
6.5 A |
|
Power supply |
230 V; 50 Hz |
