Description
Built for Precision, Powered by Innovation

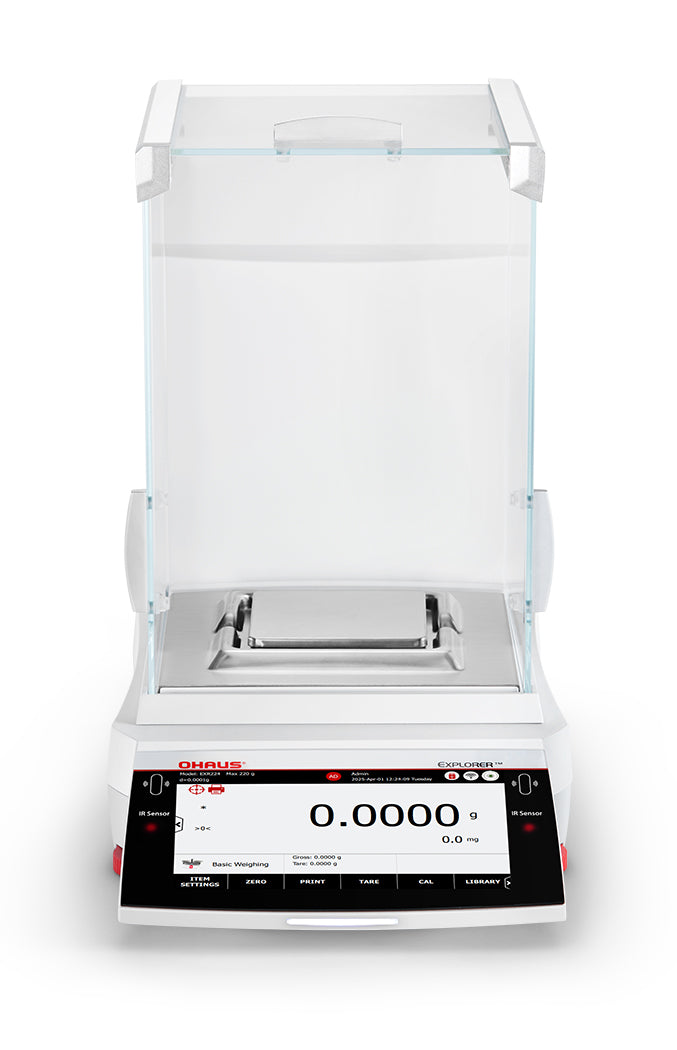

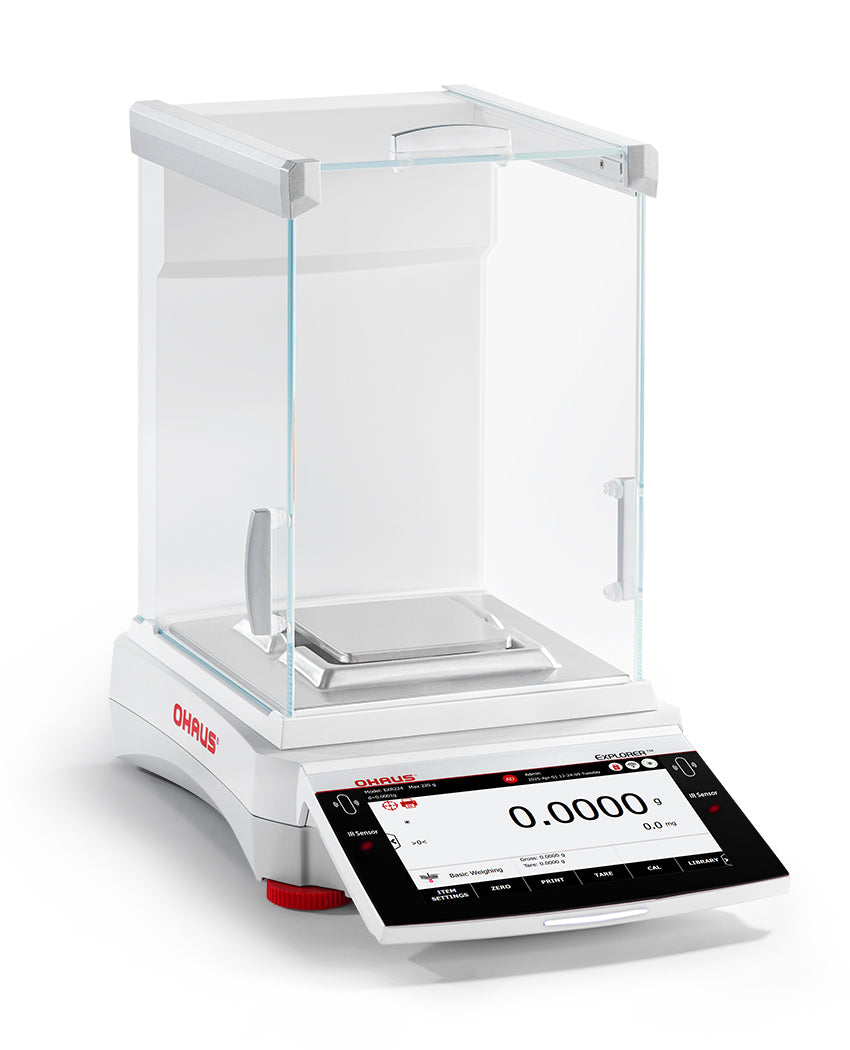

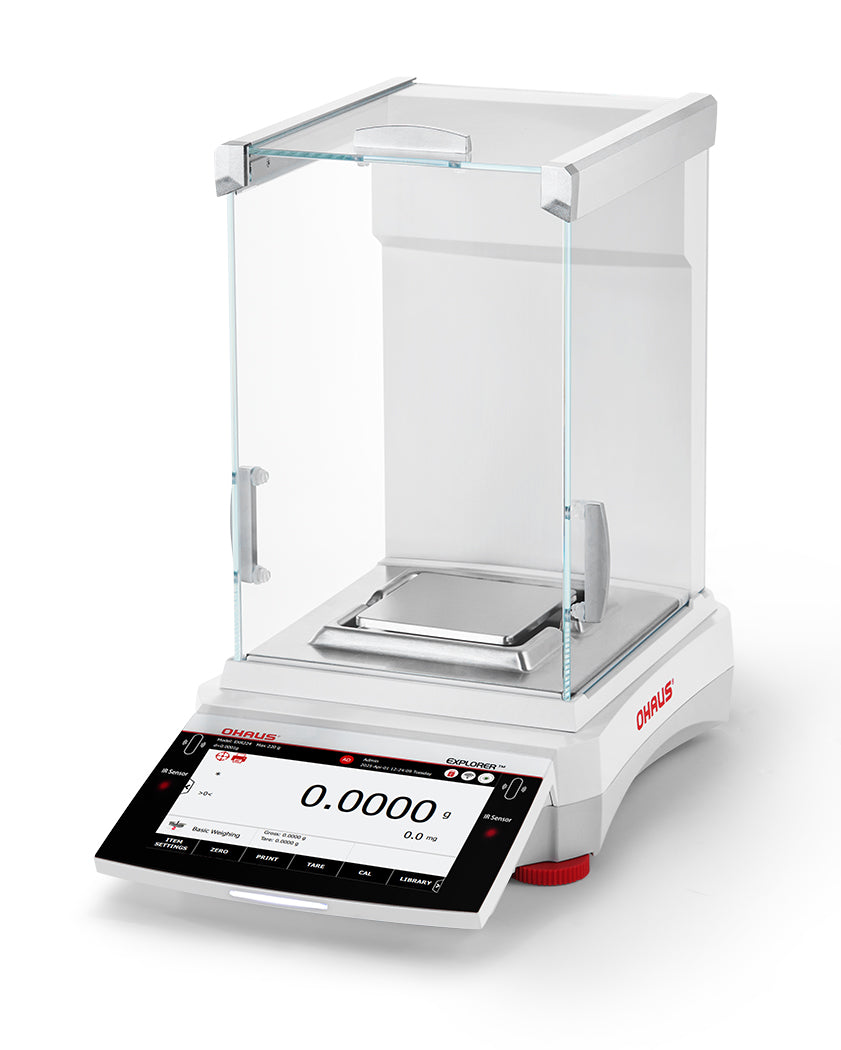

The new Explorer (EXR series) offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Unique Features:
• High Performance Weighing
Achieve consistent results with built-in automatic calibration, touchless sensors and a
ventilated weighing pan. Get reliable data with the digital high-speed load cell.
• Refined User Experience
An intuitive 7-inch glass touchscreen, digital leveling, and simplified data management
is easy to use. With an effortless installation and chemical-protective design it ensures
efficiency and comfort.
• Effective Communication Options
Supports HID connection to PC or keyboard without drivers, and provides 2-way
communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data
transfer.
Specifications
|
Model |
EXR124 |
EXR224 |
EXR324 |
|
Capacity |
120 g |
220 g |
320 g |
|
Readability d |
0.1 mg |
0.1 mg |
0.1 mg |
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.05 mg |
0.05 mg |
0.05 mg |
|
Repeatability (sd.), 5% of Full Load to Full Range |
0.1 mg |
0.1 mg |
0.1 mg |
|
Linearity Deviation Typical |
0.06 mg |
0.06 mg |
0.06 mg |
|
Linearity Deviation |
0.2 mg |
0.2 mg |
0.2 mg |
|
Span Calibration Points |
25g, 50g, 75g, 100g |
50g, 100g, 150g, 200g |
100g, 150g, 200g, 300g |
|
Weighing Units |
g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Customer 1, Customer 2 |
||
|
Stabilization Time (typical) |
2 seconds |
||
|
Sensitivity Temperature Drift (ppm/℃) |
1.5 |
||
|
Min-Weight (typical) (K=2, U=1%) |
10 mg |
||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
100 mg |
||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
82 mg |
||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay |
||
|
Display Resolution |
800 x 480 Pixels |
||
|
Communication |
USB Host (Type A) x 2, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
||
|
Leveling System |
2 Leveling Feet with Digital Leveling Bubble |
||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
||
|
Weighing Pan Size |
Square Pan 90mm x 90mm |
||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
||
|
Anti-static Glass Panel |
Standard Equipped |
||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
||
|
Assembled Dimensions (W x D x H) |
230mm x 393mm x 370mm |
||
|
Net Weight |
7.4 kg |
||
