Description
Built for Precision, Powered by Innovation

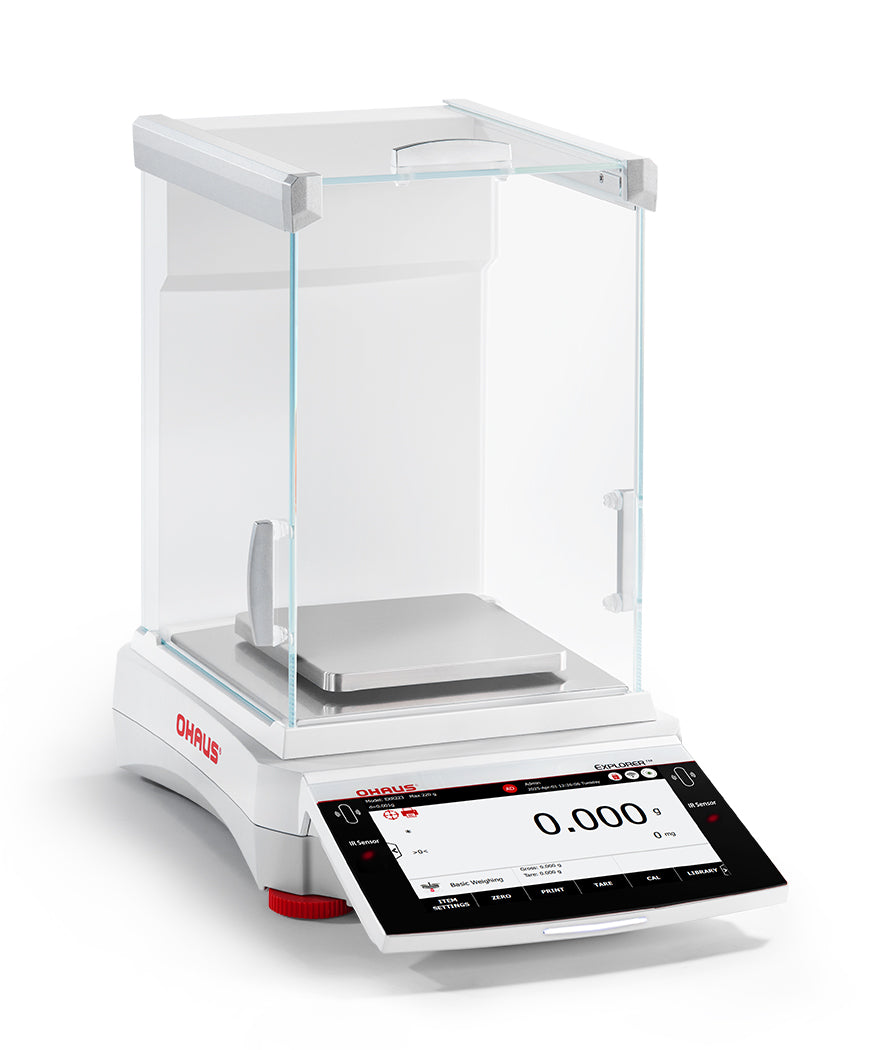

The new Explorer (EXR series) offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Unique Features:
• High Performance Weighing
Achieve consistent results with built-in automatic calibration, touchless sensors and a
ventilated weighing pan. Get reliable data with the digital high-speed load cell.
• Refined User Experience
An intuitive 7-inch glass touchscreen, digital leveling, and simplified data management
is easy to use. With an effortless installation and chemical-protective design it ensures
efficiency and comfort.
• Effective Communication Options
Supports HID connection to PC or keyboard without drivers, and provides 2-way
communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data
transfer.
Specifications
|
Model |
EXR223 |
EXR423 |
EXR623 |
EXR1203 |
|
Capacity |
220 g |
420 g |
620 g |
1200 g |
|
Readability d |
1mg |
1mg |
1mg |
1mg |
|
Repeatability (sd.), ≤5% of Full Load Typical |
0.7 mg |
0.7 mg |
0.7 mg |
0.7 mg |
|
Repeatability (sd.), 5% of Full Load to Full Range |
1 mg |
1 mg |
1 mg |
1 mg |
|
Linearity Deviation Typical |
0.6 mg |
0.6 mg |
0.6 mg |
0.6 mg |
|
Span Calibration Points |
50g, 100g, 150g, 200g |
100g, 200g, 300g, 400g |
300g, 400g, 500g, 600g |
400g, 600g, 800g, 1000g |
|
Weighing Units |
g, mg, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, Customer 1, Customer 2, lb (models with capacity ≥ 620 g), kg (models with capacity ≥ 1200 g) |
|||
|
Stabilization Time (typical) |
≤ 1.5 seconds |
|||
|
Sensitivity Temperature Drift (ppm/℃) |
3 |
|||
|
Min-Weight (typical) (K=2, U=1%) |
0.14 g |
|||
|
Min-Weight (typical) (USP, K=2, U=0.10%) |
1.4 g |
|||
|
Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) |
0.82 g |
|||
|
Terminal Display |
7-inch TFT 16.7M Color Touch Screen with Glass Overlay |
|||
|
Display Resolution |
800 x 480 Pixels |
|||
|
Communication |
USB Host (Type A) x 2, USB Device (Type C) x 1 Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle |
|||
|
Leveling System |
2 Leveling Feet with Digital Leveling Bubble |
|||
|
Power Supply |
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz AC Adapter Output: 12 VDC 1.5A |
|||
|
Weighing Pan Size |
Square Pan 130mm x 130mm |
|||
|
Touchless Sensor |
2 Touchless Sensors on the terminal |
|||
|
Anti-static Glass Panel |
Standard Equipped |
|||
|
Terminal Status Lights |
Standard Equipped, 7-color Selectable |
|||
|
Assembled Dimensions (W x D x H) |
230mm x 393mm x 370mm |
|||
|
Net Weight |
7.4 kg |
|||
