Description
Reliable and Compact Multi-Function Centrifuges Ideal for General Low Throughput Lab Applications
Reliable and Compact Multi-Function Low-Speed Centrifuge for General Purpose

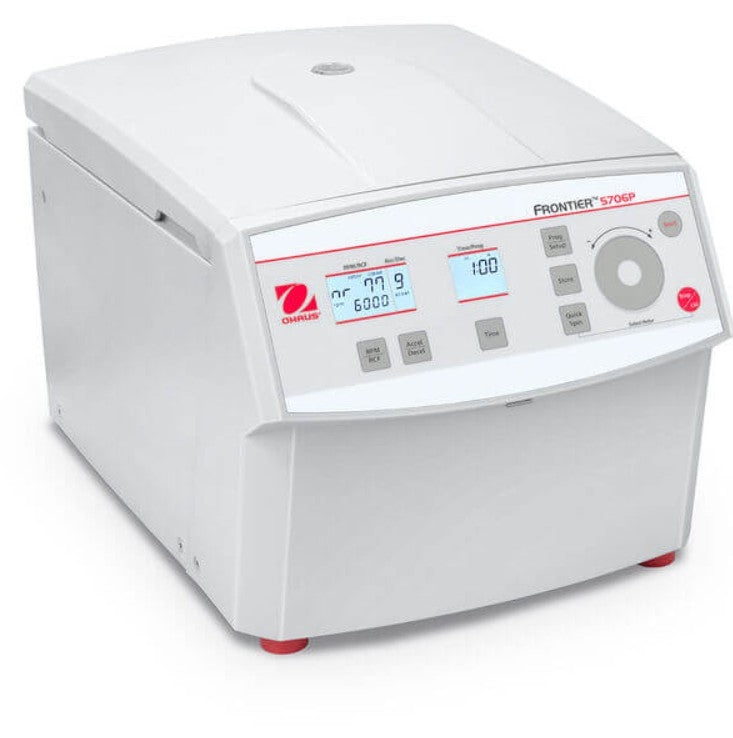

Frontier 5706P Multi Centrifuge is a small benchtop multi-function centrifuge ideal for a multitude of separation applications. With versatile standard rotor options, the FC5706P seamlessly processes both round and conical bottom tubes, including common blood and urine tubes. Enhanced by user-friendly design, this centrifuge features an intuitive interface that streamlines operation and maximizes efficiency, all while conserving valuable bench space.
Features:
- Designed for ease of operation, Frontier 5706 Multi Centrifuge features convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
- Enhanced adaptability to satisfy different customers’ requirements in general laboratory applications. The FC5706P can hold up a variety of different tubes, starting from 50 ml to smaller volume 1.5 ml tubes.The Frontier 5706P offers 5 rotors options including a fixed angle rotor suitable for 18×1.5/2.0 ml tubes and a swing-out rotor that can hold 4×10 ml blood and urine tubes, boosting its versatility for various laboratory needs.
- Enclosing all its functionalities within a small footprint, the FC5706P saves valuable space on the lab bench.
Designed for a User-Friendly Experience
- Easy-to-use touch-wheel interface for parameter adjustments
- Convenient interface shows both set and actual parameters
- One-touch toggling between RPM/RCF and Acc/Dec
- Double-line LCD display with light blue back light
- Audible signal at the end of each run with a melody
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
Safety Features Enclosed Within Small Footprint
- Microprocessors control to help prevent accidents and protect both
the user and the equipment - Rotor imbalance sensor system stops the unit when it detects an
imbalanced load - Sturdy mechanical lid with locking system
- LED status to indicate the operational condition of the centrifuge like
run completed (green), standby (yellow) or centrifugation (red)
Flexible Rotor Selections and Kits to Cover a Wide Range of General Laboratory and
Diagnostic Applications
- Maintenance-free DC motor produces a maximum G-force of 4427×g
- Speeds up to 6000 rpm and quick spin for short runs
- Additional fixed angle rotor (18×1.5/2.0 ml microtubes) and swing out
rotor (4×10 ml blood tubes) for enhanced flexibility
Specifications
|
Model |
FC5706P |
|
Speed Range |
200 – 6000 rpm; 10 rpm/set |
|
Maximum RCF |
4427×g; 10 g/set |
|
Maximum Capacity (Rotor) |
Angle Rotor: 6×50 ml |
|
Temperature range |
Air cooled |
|
Running Time |
Quick Spin, 10 sec to 99 hr 59 min, or continuous |
|
Noise level (depending on the rotor) |
≤ 56 ±2 dB(A) |
|
Acc/Dec Levels |
10/10 |
|
Allowable Density at Maximum Speed |
1.2 g/ml |
|
Allowable Kinetic Energy |
2427 Nm |
|
Rated voltage |
100-240 V/50-60 Hz |
|
Voltage Fluctuation |
± 10 % |
|
Rated current |
2.5-1.0 A |
|
Power continues |
70 W |
|
Dimensions (W×D×H) |
323×427×271 mm |
|
Net Weight (without rotor) |
14.2 kg |
|
Environment |
For indoor use only |
|
Altitude |
Use up to an altitude of 2000 m |
|
Ambient temperature |
Ambient temperature |
|
Max. relative humidity |
Max. relative humidity 80 % for temperatures up to 31 °C Decreasing linearly to 50 % relative humidity up to 35 °C. |
